150mm
Diameter
Please note; we also have ducting clips, tape, grilles and diffusers available.

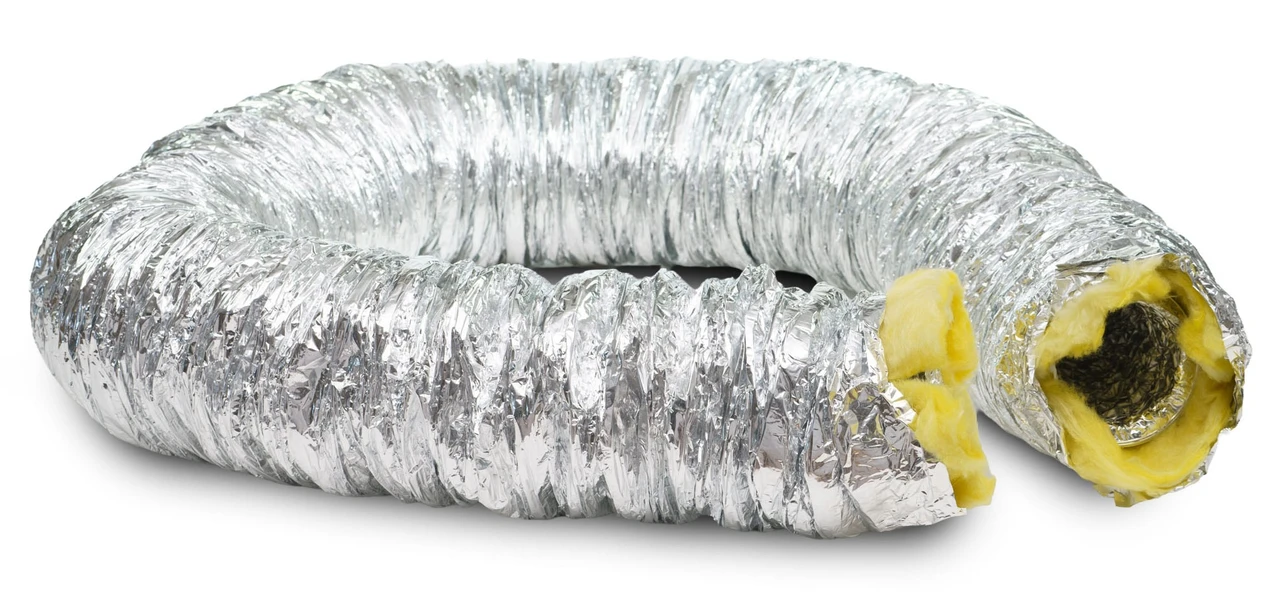

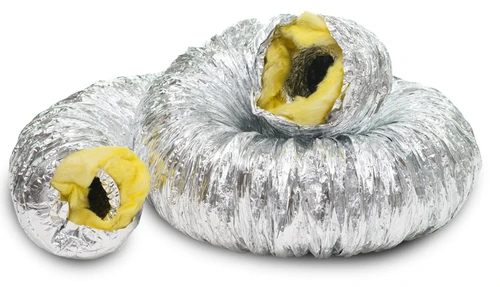

Our insulated flexible ducting is constructed with an inner duct packed with 25mm fibreglass insulation and covered with an outer jacket; this acts as a vapour barrier.
The jacket is made up of a multi layer aluminium/polyester laminated fabric which provides an outstanding combination of both tear resistance and general strength.
| Construction Material | TFF (Inner) - Aluminium/Polyester (Outer) |
| Insulation | 25mm Fibreglass |
| Diameter | 152mm |
| Temperature Range | -30°C to +120°C |
| Maximum Air Velocity | 30m/sec |
| Positive Working Pressure | 2.5 KPa (Max.) |
| Standard Length | 10m |
| Packing | Individual Box of 1.2 Metres |
| Clamping | Lightening Band, Stainless Steel Flex Clips |
| Type | Insulated Ducting |
