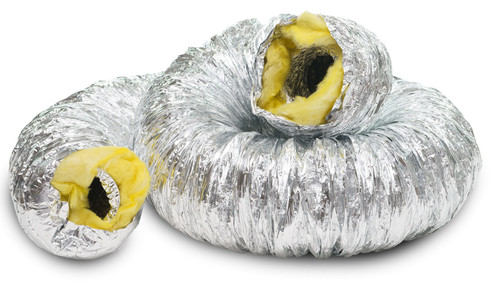

Insulated Flexible Ducting - 10 Metre - 203mm (8") Diameter

Product Code: FD203DI
(No reviews yet) Write a Review
£28.42 (Ex. VAT) £49.70
£34.10 (Inc. VAT) £59.64
On the shelf in our own UK warehouse
  • Insulated Flexible Ducting - 10 Metre - 203mm (8") Diameter
  • Insulated Flexible Ducting - 10 Metre - 203mm (8") Diameter
  • Insulated Flexible Ducting - 10 Metre - 203mm (8") Diameter
  • Insulated Flexible Ducting - 10 Metre - 203mm (8") Diameter
£28.42 (Ex. VAT) £49.70
£34.10 (Inc. VAT) £59.64
Get this item
Order in the next
  • hours,
  • mins and
  • secs

ACCESSORRIES THAT FIT 203mm

Aluminium Foil Tape 30 micron x 75mm x 50m
FDAT75mm
£5.5 (Ex. VAT)
Metal Extract Air Valve 200mm (8") Diameter
FDMAV200
£8.01 (Ex. VAT)
Pack of 10 Stainless Steel Duct Clips - 233mm (9") Diameter
FD233DC
£4.13 (Ex. VAT)
Metal back Draught Shutter - 200mm Diameter
FDBDS200
£10.12 (Ex. VAT)
ALL VENTILATION ACCESSORIES

Please note; we also have ducting clips, tape, grilles and diffusers available.

Advantages

  • Supplied in Standard 10 Meter Length, Compressed to 1.6 Mts.
  • Individually Boxed.
  • Easy to Connect to Either Round or Oval Ducting.
  • No Special Tools Required For Cutting or Fixing.
  • In The Event of Fire No Toxic Gases are Emitted.
  • The Products Have Been Successfully Tested and Fire Resistance Rated

Duct sizes are specified by their internal bore size (the inner diameter)

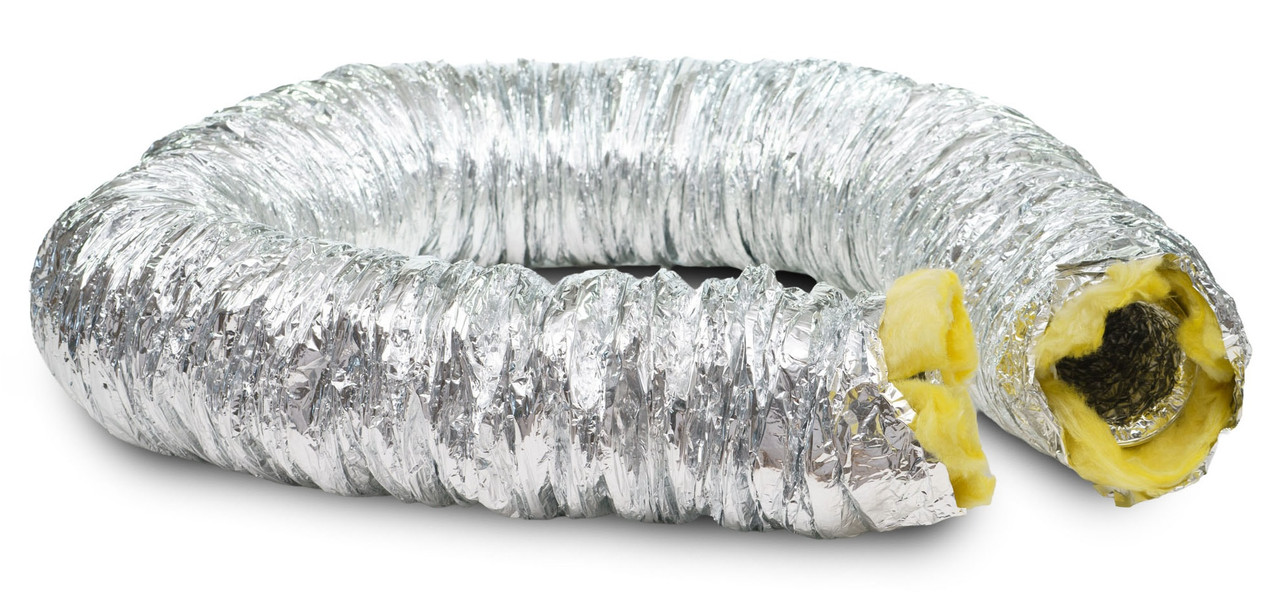

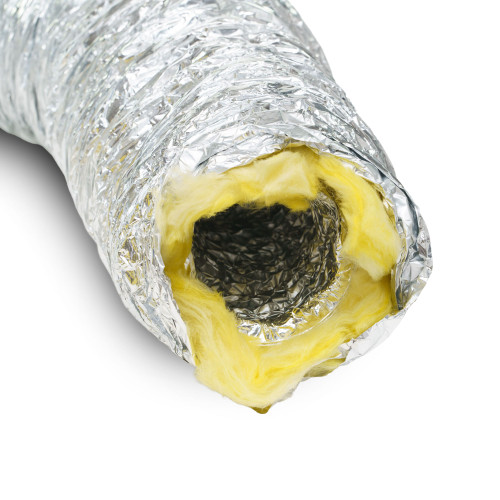

Our insulated flexible ducting is constructed with an inner duct packed with 25mm fibreglass insulation and covered with an outer jacket; this acts as a vapour barrier.

The jacket is made up of a multi layer aluminium/polyester laminated fabric which provides an outstanding combination of both tear resistance and general strength.

Technical Specifications
Construction Material TFF (Inner) - Aluminium/Polyester (Outer)
Insulation 25mm Fibreglass
Diameter 203mm
Temperature Range -30°C to +120°C
Maximum Air Velocity 30m/sec
Positive Working Pressure 2.5 KPa (Max.)
Standard Length 10m
Packing Individual Box of 1.2 Metres
Clamping Lightening Band, Stainless Steel Flex Clips
Type Insulated Ducting
